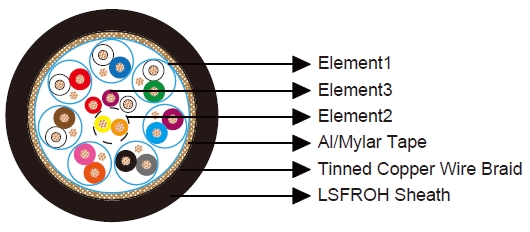

DVI Rolling Stock Cable (7P+1P+3C)
Element 1: 7PR×24AWG(Cu/PE/Individual Al-mylar Screen+ TC Drain Wire)
| Conductor |
Stranded annealed tinned copper wire, 7/0.20mm |
| Insulation |
Polyethylene. Thickness 0.28mm. Outer diameter 1.16+0.05mm |
| Core Identification |
1PR=White/Brown; 2PR=White/Red, 3PR=White/Green; 4PR=White/ Blue, 5PR=Grey/Black, 6PR=Pink/Orange, 7PR=Light Blue/Purple |
| Twisting |
The cores shall twisted together in pair, the lay between each twist shall not exceed 100 mm |
| Individual Shield |
Aluminum/ mylar laminated tape applied with the metallic side down in electrical contact with a 24AWG tinned copper drain wire (7 strands formation). A 23 micron mylar tape is applied over the screening tape with a minimum 25% overlap. |
Element 2: 1PR×24AWG(7/0.2mm) Stranded TC/PE
| Conductor |
Stranded annealed tinned copper wire, 7/0.20mm |
| Insulation |
High density polyethylene. Thickness 0.15mm. Outer diameter 0.9mm |
| Insulation Color |
Yellow and orange |
| Twisting |
The cores shall twisted together in pair, the lay between each twist shall not exceed 100 mm |
Element 3: 3C×24AWG(7/0.2mm) Stranded TC/PE
| Conductor |
Stranded annealed tinned copper wire, 7/0.20mm |
| Insulation |
High density polyethylene.Thickness 0.15mm. Outer diameter 0.9mm |
| Insulation Color |
Red/Purple/White |
Element Assembly
| Overall Screen |
Aluminum/ mylar tape |
| Braid Shield |
Braid of tinned copper wire. Coverage ≥ 85% |
| Outer Sheath |
LSFROH elastomeric sheath,Thickness 1.0mm. Outer diameter 12.5+1mm, other materail is optional |
| Sheath Color |
Black or as per the client’s requirement |
|
